subject: Introduction to Woosung Machinery Co. and Our Paper Cup Machine Model SUPER SH-K01
Dear Valued Customers,
We are pleased to introduce Woosung Machinery Co., a leading manufacturer in South Korea specializing exclusively in paper cup production equipment.
Established in 1979, Woosung Machinery has been committed to a single path—the development and manufacture of paper cup production machinery—for over 40 years. With decades of accumulated technological expertise and hands-on experience, we continue to deliver high-quality, reliable machines tailored to meet the diverse needs of our customers around the world.
For more detailed information about our company and products, we kindly invite you to visit our official website at www.papercupmc01.com.
We are also proud to introduce one of our flagship models:
SUPER SH-K01 – Premium High-Speed Performance and Long-Term Durability
The SUPER SH-K01 is engineered with top-grade materials to deliver outstanding high-speed performance from day one. Designed for long-term reliability, this model operates smoothly for decades, even under the most demanding conditions.
Our expert engineering team has meticulously crafted every component to maximize durability, efficiency, and mechanical resilience. The SUPER SH-K01 has undergone rigorous testing to ensure it withstands extreme speeds without any compromise in performance or structural integrity.
Whether you’re in need of high-speed industrial machinery or a solution that offers both longevity and precision, the SUPER SH-K01 is a dependable choice. Customers can trust its proven performance and enjoy peace of mind knowing it’s built to last.
The Technology Behind the SUPER SH-K01
1. Superior Power Transmission Designed for High speed Durablity
The SUPER SH-K01 is engineered for continuous high-speed performance without compromise — not just for days or months, but for years of reliable operation.
In typical high-speed machines, critical components like bearings and cams wear down over time due to friction and shock. This leads to increased noise, vibration, and eventually, a noticeable drop in production efficiency.
To eliminate this risk, we use an advanced high-strength material specially developed for extreme durability. This material is so unique, it cannot be processed with standard milling machines — and it costs more than four times the price of conventional materials used in earlier SH-K01 models.
✅Key Benefits:
-
Designed for high-speed industrial use
-
Built with extreme durability in mind
-
Reduces maintenance and downtime
-
Delivers long-term value and reliability
.
2. Anti-Vibration Frame for Maximum Stability
Stable operation is crucial for reliable and efficient production in paper cup machines. The SUPER SH-K01 features a reinforced base frame designed specifically to minimize vibrations and keep the machine firmly anchored during high-speed and heavy-duty operation.
Its carefully engineered center of gravity further enhances stability, ensuring smooth and precise performance even under demanding conditions typical in paper cup manufacturing.
This added weight not only improves machine stability but also reduces operational noise, creating a quieter and more comfortable working environment for your production line.
✅Why It Matters:
-
Enhanced Production Quality: Stable machines ensure consistent, high-quality paper cup output.
-
Reduced Downtime: Minimizing vibrations lowers wear and tear, extending machine life.
-
Quieter Work Environment: Less noise improves operator comfort and safety.
-
Improved Efficiency: Stable operation means fewer disruptions and smoother workflows.
3. Special Mold Coating & Lightweight Mold Design
To maximize machine efficiency and extend mold lifespan, the SUPER SH-K01 uses a special protective coating that significantly reduces wear and tear. Additionally, the mold has been lightweight-optimized, enabling faster cycle times and easier maintenance.
With the rising global demand for eco-friendly coated paper, driven by the shift toward sustainable practices, manufacturers are facing new challenges. These environmentally friendly coatings are often highly adhesive, which can cause the paper to stick to the mold during processing.
When this occurs, production must be stopped immediately to avoid serious damage or unplanned downtime. Repeated sticking issues can lead to frequent machine halts, increased maintenance, and costly production delays.
To overcome these challenges and stay ahead of market trends, we have developed a specialized mold coating technology that offers exceptional heat resistance and minimizes adhesion problems. This allows for smooth processing of eco-coated paper while maintaining high production speed and reliability.
✅ Key Benefits:
- Reduces wear & tear with protective coating
- Lightweight mold for faster, more efficient operation
- Specialized coating handles sticky, eco-friendly paper
- Prevents downtime and keeps your production line running
4. Highly Durable and Stable Hot Air Heating System for Paper Cup Machines
We specialize in delivering highly durable and stable hot air heating systems specifically designed for paper cup machines. These systems are renowned for their exceptional quality and reliable performance, manufactured by a globally recognized brand with an outstanding reputation in the industry.
5. Fully Digitized Components for Real-Time Machine Monitoring
The SUPER SH-K01 features a fully digitized system that provides a clear, real-time overview of the condition of every component. Users can easily monitor which parts are performing optimally and quickly identify any potential issues—all displayed on a single, user-friendly screen.
This comprehensive visibility allows for proactive maintenance and helps prevent unexpected downtime, ensuring smooth and efficient operation.
✅Key Benefits:
- Improved Reliability: Early detection of issues prevents major breakdowns.
- Increased Efficiency: Quick diagnostics reduce machine downtime.
- User-Friendly: Centralized monitoring simplifies machine management.
- Cost Savings: Proactive maintenance lowers repair costs and extends machine life.
6.Leak Prevention System in the SUPER SH-K01 Paper Cup Making Machine
One of the most common and serious issues in paper cup production is leakage. The SUPER SH-K01 paper cup making machine is equipped with an innovative leak prevention system that is specifically designed to minimize this problem and maintain consistent cup quality.
Leakage tends to occur most frequently when the machine is restarted after a sudden stop due to an error. However, as long as production conditions are properly managed and machine settings remain accurate, the SUPER SH-K01 can efficiently detect and remove any cups that may be prone to leaking.
This is achieved through a highly reliable rejection system that automatically identifies defective cups and removes them from the production line, ensuring only leak-free cups reach the final stage.
✅Key Benefits:
- Reduced Leakage Risk: Engineered to prevent the most common paper cup defect
- Automatic Rejection System: Faulty cups are instantly removed without manual checking
- Smooth Restart Handling: Maintains quality even after production interruptions
- Higher Product Quality: Consistently delivers strong, leak-proof paper cups
- Optimized for Efficiency: Designed for uninterrupted, high-speed paper cup manufacturing
7. Automatic Lubrication System for Smooth Operation
The SUPER SH-K01 paper cup making machine features a fully automatic lubrication system that ensures all critical components receive consistent oil supply without the need for manual intervention.This system is designed to keep the machine running smoothly by reducing friction, preventing wear, and extending the lifespan of moving parts—resulting in more stable and efficient production.
✅Key Benefits:
- Reduced Maintenance Effort: No need for manual oiling
- Improved Machine Longevity: Minimizes wear and tear on components
- Consistent Performance: Ensures smooth operation during high-speed production
- Lower Downtime: Keeps the machine in optimal condition for longer periods
8. Two-Step Side Sealing with Hot Air and Ultrasonic Technology
The SUPER SH-K01 paper cup making machine is equipped with a two-step side sealing system that combines hot air and ultrasonic sealing technologies.
This advanced dual-sealing approach ensures a stronger, more reliable bond along the cup’s side seam, minimizing the risk of leakage and improving the overall durability and finish of each cup.
By applying heat first and then reinforcing the seal with ultrasonic waves, the machine delivers superior sealing quality even under high-speed production conditions.
✅Key Benefits:
- Stronger Sealing: Dual sealing method ensures leak-proof side seams
- Higher Product Quality: Clean, precise seals for a more professional finish
- Enhanced Reliability: Reduces risk of cup failure during use
- Optimized for Speed: Maintains sealing strength even during fast production
To achieve a perfect seal on paper and ensure optimal performance, the MH-K01 model employs a high-performance hot air heater for effective pre-heating, combined with ultrasonic sealing that guarantees a secure and durable seal every time.
9. Two-Step Curing Process for Stronger Cup Structure
The SUPER SH-K01 paper cup making machine features a two-step curing process designed to enhance the overall strength, stability, and sealing performance of each cup.
This process involves an initial heat application to set the adhesive and form, followed by a second stage that reinforces the bond and cures the material completely. The result is a more durable, better-shaped cup with increased resistance to deformation and leakage.
This added step ensures consistency in cup quality, especially important in high-speed production environments where precision and strength are critical.
✅Key Benefits:
- Improved Durability: Reinforced curing enhances cup strength
- Leak Prevention: Stronger seals reduce the chance of leakage
- Better Cup Shape: Helps maintain consistent form and structure
- High-Speed Ready: Reliable curing even in fast production cycles
10. Bottom Paper feeding Servo Drive Motor
The SUPER SH-K01 paper cup making machine is equipped with a high-performance servo drive motor dedicated to feeding the bottom paper with excepti
✅Key Benefits:
- Accurate Bottom Paper Feeding: Servo-driven control ensures high-speed precision
- Smooth Synchronization: Perfect alignment with forming and cutting mechanisms
- Consistent Quality: Supports stable cup forming with reduced error rate
11. Bottom Paper Rejection System for Enhanced Safety
In rare cases—such as when the machine restarts after a side sealing error—only the bottom paper may feed into the heating section without a corresponding cup body. If this bottom paper is accompanied by a misaligned or damaged paper cup, it can result in serious damage to the heating unit or even pose a fire hazard.
To prevent this, the SUPER SH-K01 paper cup making machine is equipped with an intelligent bottom paper rejection system. This safety feature automatically detects and removes any bottom paper that attempts to enter the heating area without proper alignment or a cup body.
This ensures safer operation and protects both the machine and production quality—especially during restart scenarios.
✅Key Benefits:
- Fire Hazard Prevention: Eliminates risk of bottom paper overheating alone
- Machine Protection: Prevents damage from misfed or defective cups
- Safe Restart Mechanism: Designed to handle restart situations intelligently
- Enhanced Operational Safety: Supports uninterrupted, worry-free production
- Smart Rejection Logic: Automatically filters out unsafe feeding scenarios
12. Safety Interlock System
To ensure operator safety, the SUPER SH-K01 paper cup making machine is equipped with a safety interlock system that automatically stops the machine when the operator opens the door. This essential safety feature helps prevent potential accidents or injuries during operation, allowing maintenance or inspection tasks to be carried out with confidence.
✅Key Benefits:
- Automatic Safety Stop: Machine halts immediately if the door is opened
- Operator Protection: Reduces the risk of injury during inspection or maintenance

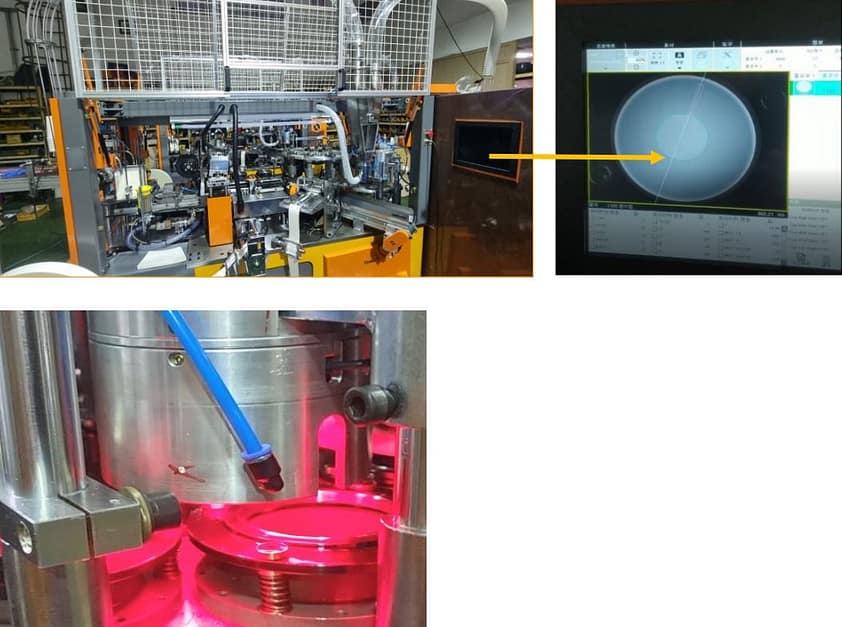

13. High-Precision Inspection Camera for Quality Assurance
The SUPER SH-K01 paper cup making machine is equipped with a high-precision inspection camera system designed to detect critical quality issues in real time.
This advanced system identifies defects such as dust or foreign particles inside the cup, severely curled rims, and potential leakage caused by gaps between the bottom base and side wall. These types of flaws can result in customer complaints or product rejection, which may harm your brand reputation and lead to costly returns.
By catching these issues during production, the SUPER SH-K01 helps ensure that only flawless paper cups make it to your customers—protecting your business and reinforcing product trust.
✅Key Benefits:
- Real-Time Defect Detection: Instantly spots internal dust, rim defects, and leakage risks
- Higher Product Quality: Prevents flawed cups from reaching the end user
- Reduced Complaints: Helps avoid customer dissatisfaction and brand damage
- Automated Quality Control: No manual inspection required—ensures consistency
14. Digitalized Cam Positioner
The compressor system in the SUPER SH-K01 allows users to easily adjust the timing of air supply through a simple button interface. This design eliminates the need to access or touch any internal machine parts, making adjustments safer and more user-friendly.
This convenient feature ensures precise control over air supply timing, helping maintain optimal machine performance with minimal effort.
✅Key Benefits:
- Easy Operation: Simple button control for quick and safe adjustments
- No Internal Access Needed: Reduces risk of injury or machine damage
- Precise Timing Control: Optimizes air supply for consistent performance
- Improved Efficiency: Minimizes downtime with fast, hassle-free adjustments
- User-Friendly Design: Enhances operator convenience and safety
General Specification – SUPER SH-K01
- Power Requirement: 25 kW per hour
- Compressed Air Requirement: 10 ~ 15 HP
- Weight: 4,500 kg
- Dimensions:
- Length: 3,500 mm (including conveyor for side wall paper)
- Height: 1,900 mm
- Width: 2,000 mm
- Production Speed: 140 ~ 150 pcs per minute
-
